XA-Series, Air Driven Hydraulic Pumps



Ergonomic design for less operator fatigue

Variable oil flow & fine metering for precise control

Higher oil flow for increased productivity

Closed hydraulic system prevents contamination and
  allows pump usage in any position


Pedal lock function for retract position

Ground screw for improved ATEX explosion safety

External adjustable pressure setting valve.

Easy operated by foot. No need to fully lift up foot – rest bodyweight on heel,
resulting in a handsfree and stabile working position.



















  XVARI® Technology

Production Application
XA11 pump is used with a 13 tons

hollow cylinder to compress and

position diesel engine valve springs.

The operator benefits from the fine

metering capacities of the

XVARI ® Technology to apply the

mandatory precise stroke and force.

  XA-SERIES PERFORMANCE CHART
Maximum

Pressure


(bar)
Output

Flow Rate


l/min
Pump
Series
Valve
Function
Dynamic
Air
Pressure


(bar)
No

load
Load
700
2,0
0,25
XA 1
Advance/Hold/Retract
2,1 - 8,6































SELECTION CHART

For use

with cylinder

or tool

Usable Oil

Capacity


(litres)

Model

Number
1)

Pressure

Gauge

3-way

3-pos.

Valve

4-way

3-pos.

Valve

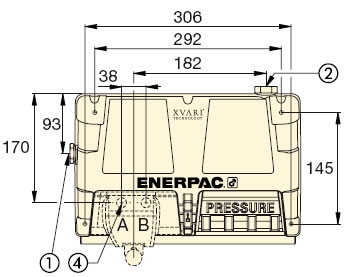

Dimensions (mm)
kg

H1
H2
L
Singleacting


1,0
XA 11
152
8,6
2,0
XA 12
170
10,2
Singleacting


1,0
XA 11G
152
8,8
2,0
XA 12G
170
10,4
Doubleacting


1,0
XA 11V
152
279
10,1
2,0
XA 12V
170
279
11,7
Doubleacting


1,0
XA 11VG
152
279
10,3
2,0
XA 12VG
170
279
11,9
