Cylinders

High-Quality Hydraulic Cylinders, Enerpac Cylinders & RC Hydraulics

Enerpac provides the largest selection of cylinders, fully supported and available through Shaw Hydraulics Ltd. We have a solution for virtually any application in most industrial and commercial work environments. Enerpac offers hundreds of different configurations of mechanical and hydraulic cylinders and lifting systems, plus products ranging from hydraulic jacks for portability and tight fits, to engineered systems for precise control over multiple lift points.

General Purpose Hydraulic Cylinders Lightweight Aluminium Cylinders High Tonnage Construction Cylinders Lock Nut Cylinders Low Height Cylinders Hollow Plunger Cylinders Long Stroke/High Cycle Cylinders Specialty Lifting Equipment Lifting Systems Cylinder and Pump Sets

General Purpose Hydraulic Cylinders

Enerpac general purpose cylinders are available in hundreds of different mechanical or hydraulic cylinder configurations. Whatever the industrial application; lifting, pushing, pulling and available in range of force capacities, stroke lengths or size restrictions. Single acting, hollow plunger, or low height, you can be sure that Enerpac has the hydraulic jack to suit your high force application.

Scroll to Top Enquire

RT-Series, Multi-stage, Telescopic Hydraulic Cylinders

Capacity 14 - 31 ton
Stroke 270 - 600 mm
Max. Operating Pressure 700 bar

Info

RC-Series, Single Acting Cylinders

Capacity 5 - 95 ton
Stroke 16 - 362 mm
Max. Operating Pressure 700 bar

Info

RSM, RCS-Series, Low Height Cylinders

Capacity 5 - 150 ton
Stroke 6 - 62 mm
Max. Operating Pressure 700 bar

Info

BRC, BRP-Series, Pull Cylinders

Capacity 2.5 - 50 ton
Stroke 127 - 155 mm
Max. Operating Pressure 700 bar

Info

RCH-Series, Hollow Plunger Cylinders

Capacity 13 - 95 ton
Stroke 8 - 155 mm
Max. Operating Pressure 700 bar

Info

RRH-Series, Hollow Plunger Cylinders

Capacity 30 - 145 ton
Stroke 38 - 258 mm
Center Hole Diameter 33.3 - 79.2 mm

Info

RC-Series, Cylinder Accessories

Capacity 5 - 95 ton

Info

SC-Series, Cylinder-Pump Sets

Capacity 13 - 95 ton
Stroke 38 - 362 mm
Max. Operating Pressure 700 bar

Info

Lightweight Aluminium Cylinders

Utilizing the latest in alloy technology, high-strength coatings, seal design and bearing materials, Enerpac aluminium cylinders can change the way you think about your cylinder applications. Our lightweight cylinders provide the strength of steel with the weight, transportability and easy positioning of aluminium.

Scroll to Top Enquire

RAC-Series, Aluminium Cylinders

Capacity 20 - 150 ton
Stroke 50 - 250 mm
Max. Operating Pressure 700 bar

Info

RACL-Series, Aluminium Lock Nut Cylinders

Capacity 20 - 150 ton
Stroke 50 - 250 mm
Max. Operating Pressure 700 bar

Info

RACH-Series, Aluminium Hollow Plunger Cylinders

Capacity 20 - 150 ton
Stroke 50 - 250 mm
Center Hole Diameter 27 - 79 mm
Max. Operating Pressure 700 bar

Info

RAR-Series, Double-Acting, Aluminium Cylinders

Capacity 20 - 150 ton
Stroke 50 - 250 mm
Max. Operating Pressure 700 bar

Info

RARH-Series, Aluminium Hollow Plunger Cylinders

Capacity 30 - 150 ton
Stroke 50 - 250 mm
Center Hole Diameter 34 - 79 mm
Max. Operating Pressure 700 bar

Info

High Tonnage Construction Cylinders

Enerpac high tonnage construction cylinders are designed specifically for heavy lifting solutions. Cylinder lifting capacity ranges from 50 to 1,000 tons and supplies up to 10,000 psi. The high tonnage cylinder series features include an integral stop ring which provides piston blow out protection, safety lock nut for mechanical load holding and double acting for positive retraction.

Scroll to Top Enquire

LPL-Series, Low-height Lock Nut Cylinders

Capacity 60 - 500 ton
Stroke 45 - 50 mm
Max. Operating Pressure 700 bar

Info

CUSP-Series High Tonnage Ultra Flat Cylinder

Capacity 10 - 1000 ton
Stroke 7 - 17 mm
Titled Stroke 6 - 10 mm
Max. Operating Pressure 700 bar

Info

HCG-Series, High-Tonnage Cylinders

Capacity 50 - 1000 ton
Stroke 50 - 300 mm
Max. Operating Pressure 700 bar

Info

HCR-Series, High Tonnage Cylinders

Capacity 50 - 1000 ton
Stroke 50 - 300 mm
Max. Operating Pressure 700 bar

Info

HCL Series Lock Nut Cylinders

Capacity 50 - 1000 ton
Stroke 50 - 300 mm
Max. Operating Pressure 700 bar

Info

HCRL-Series Double Acting Lock Nut Cylinders

Capacity 50 - 300 ton
Stroke 150 - 300 mm
Max. Operating Pressure 700 bar

Info

Lock Nut Cylinders

Enerpac Lock Nut Cylinders provide mechanical load holding for extended periods of time. Available in Low Height, Lightweight or High Tonnage models, with capacities from 20 tons up to 1000 tons and stroke lengths from 45 mm to 300 mm. There is a lock nut cylinder to meet your every requirement and industrial application.

Scroll to Top Enquire

LPL-Series, Low-height Lock Nut Cylinders

Capacity 60 - 500 ton
Stroke 45 - 50 mm
Max. Operating Pressure 700 bar

Info

HCL Series Lock Nut Cylinders

Capacity 50 - 1000 ton
Stroke 50 - 300 mm
Max. Operating Pressure 700 bar

Info

HCRL-Series Double Acting Lock Nut Cylinders

Capacity 50 - 300 ton
Stroke 150 - 300 mm
Max. Operating Pressure 700 bar

Info

RACL-Series Aluminium Lock Nut Cylinders

Capacity 20 - 150 ton
Stroke 50 - 250 mm
Max. Operating Pressure 700 bar

Info

Low Height Cylinders

Enerpac low height cylinders provide the maximum power to height ratio. A compact, low height cylinder design is ideal for confined spaces where other cylinders will not fit.

Scroll to Top Enquire

CUSP-Series High Tonnage Ultra Flat Cylinder, Tilting Plunger

Capacity 10 - 1000 ton
Stroke 7 - 17 mm
Titled Stroke 6 - 10 mm
Max. Operating Pressure 700 bar

Info

CULP-Series Ultra Flat Cylinder Stop Ring

Capacity 10 - 50 ton
Stroke 6 mm
Integrated Stop Ring
Max. Operating Pressure 700 bar

Info

LPL-Series, Low-height Lock Nut Cylinders

Capacity 60 - 500 ton
Stroke 45 - 50 mm
Max. Operating Pressure 700 bar

Info

RSM, RCS-Series, Low Height Cylinders

Capacity 5 - 150 ton
Stroke 6 - 62 mm
Max. Operating Pressure 700 bar

Info

RLT-Series Telescopic Cylinders

Capacity 4.4 - 74.1 ton
Stroke 17 - 40 mm
Max. Operating Pressure 700 bar

Info

Hollow Plunger Cylinders

Enerpac high tonnage construction cylinders are designed specifically for heavy lifting solutions. Cylinder lifting capacity ranges from 50 to 1,000 tons and supplies up to 10,000 psi. The high tonnage cylinder series features include an integral stop ring which provides piston blow out protection, safety lock nut for mechanical load holding and double acting for positive retraction.

Scroll to Top Enquire

RACH-Series, Aluminium Hollow Plunger Cylinders

Capacity 20 - 150 ton
Stroke 50 - 250 mm
Center Hole Diameter 27 - 79 mm
Max. Operating Pressure 700 bar

Info

RCH-Series, Hollow Plunger Cylinders

Capacity 13 - 95 ton
Stroke 8 - 155 mm
Max. Operating Pressure 700 bar

Info

RRH-Series, Hollow Plunger Cylinders

Capacity 30 - 145 ton
Stroke 38 - 258 mm
Center Hole Diameter 33.3 - 79.2 mm

Info

Long Stroke / High Cycle Cylinders

Enerpac long stroke / high cycle cylinders provide high precision and performance and are some of the most versatile Enerpac cylinders. Rugged enough for the toughest job site uses and precision designed for high cycle industrial uses.

Scroll to Top Enquire

RT-Series Multi-STage Telescopic Hydraulic Cylinders

Capacity 14 - 31 ton
Stroke 270 - 600 mm
Max. Operating Pressure 700 bar

Info

BRD-Series Precision Production Cylinders

Capacity 4 - 23 ton
Stroke 28 - 260 mm
Max. Operating Pressure 700 bar

Info

RR-Series Double Acting Cylinders

Capacity 10 - 520 ton
Stroke 57 - 1219 mm
Max. Operating Pressure 700 bar

Info

BAD-Series BRD Cylinder Attachments

Capacity 4 - 23 ton

Info

Specialty Lifting Equipment

Enerpac specializes in high force lifting equipment, our specialty tools & equipment provide lifting solutions for a range of applications. LPC, LB, PR, JHA, JH, SOH-series

Scroll to Top Enquire

PL-Series Pow'R-LOCK Self Locking Portable Lift System

Capacity 181 ton
Stroke 356 - 622 mm
Max. Operating Pressure 700 bar

Info

JH JHA-Series Aluminium and Steel Jacks

Capacity 7 - 150 ton
Stroke 76 - 155 mm
Max. Operating Pressure 700 bar

Info

GBJ Series Industrial Bottle Jacks

Capacity 2 - 100 ton
Stroke 62 - 460 mm

Info

PR-Series POW'R-RISER Lifting Jack

Rated Lifting Capacity 534 - 1779 kN
Stroke 356 - 686 mm
Max. Operating Pressure 700 bar

Info

RC P V-Series Extreme Enviroments Products

Capacity 5 - 25 ton
Stroke 54 - 158 mm
Max. Operating Pressure 700 bar

Info

LW Series Hydraulic Vertical Lifting Wedge

Max. Lifting Force 16 ton
Lifting Stroke 21 mm
Tip Clearance / Max. Spread 10 mm / 81.5 mm
Max. Operating Pressure 700 bar

Info

BLS Series Climbing Jacks

Capacity (per Lifting Point) 50 - 200 ton
Stroke (per Stage) 150 - 161 mm
Max. Operating Pressure 700 bar

Info

SOH-Series Hydraulic Machine Lifts

Lifting Capacity 8.5 - 20 ton
Stroke 136 - 157 mm
Toe Clearance 20 mm
Max. Operating Pressure 700 bar

Info

Lifting Systems

Enerpac has been developing lifting equipment and systems for over 50 years. Our lifting systems provide solutions for precise positioning of heavy loads. By integrating computer controls and hydraulics, our products are able to make complicated lifting jobs safer and easier to perform. Our continued focus on safety and reliability has made us the preferred supplier to many of the industry’s leading lifting and rigging equipment experts.

Scroll to Top Enquire

SHAS Series SyncHoist

Capacity (per Lifting Point) 100 - 225 ton
Maximum Stroke 1000 - 1500 mm
Accuracy Over Full Stroke ± 1 mm

Info

SFP Series 700 bar Split Flow Hydraulic Pumps

Reservoir 40 - 150 litres
Split Flow Outlets 2, 4, and 6
Flow 0.45 - 4.20 l/min
Max. Operating Pressure 700 bar

Info

EVO Synchronous Lifting Systems

Number of Lift Points 4 - 12
Accuracy EVO-System 1 mm over full stroke

Info

Hydraulic Gantries

Capacity (with 4 towers) 61 - 1069 ton
Lift Height 3.49 - 14.55 m
Max. Operating Pressure 700 bar

Info

SHS-Series SyncHoist Load Positioning

Capacity (per Lifting Point) 55 - 110 ton
Max. Stroke 500 - 1500 mm
Max. Operating Pressure 700 bar

Info

HSL-Series Strand Jacks

Capacity 15 - 1250 ton
Stroke 250 - 600 mm
Max. Operating Pressure 700 bar

Info

Jack-Up Systems

Capacity (per Lifting Tower) 125 - 750 ton
Lifting Height Up to 6 - 20 metres

Info

BLS-Series Climbing Jacks

Capacity 50 - 200 ton
Stroke (per Stage) 150 - 161 mm
Max. Operating Pressure 700 bar

Info

Cylinder and Pump Sets

Ready-to-use hydraulic sets. Enerpac Cylinder and Pump sets provide the quickest and easiest way to start working right away.

Scroll to Top Enquire

Power-Box Portable Tool Sets

Capacity 1 - 45 ton
Stroke 11 - 156 mm
Max. Operating Pressure 700 bar

Info

SC-Series Cylinder Pump Sets

Capacity 5 - 95
Stroke 38 - 362 mm
Max. Operating Pressure 700 bar

Info

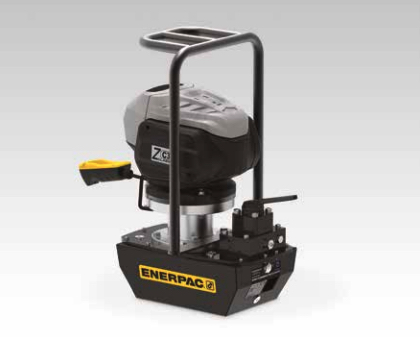

ZC-Series Cordless Hydraulic Pump

Reservoir 8 litres
Flow 0.52 l/min
Motor Size: 1.0 kW
Max. Operating Pressure 700 bar

Info
